| Model | ZL38-27 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 66V：2-12W / 126V：3-18W / 246V：5-36W | ||||||||

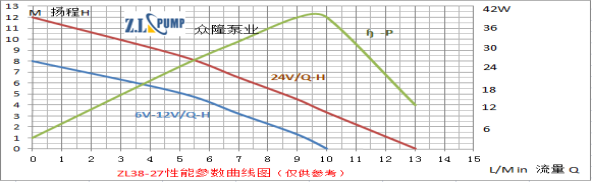

| Static Water Head | 2-11M | ||||||||
| Static flow rate | 5-13Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | PH value：PH5-10（Weak acid and weak base）、non-Submersible pump | ||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜40dB | ||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤90℃ | ||||||||
| Application | Pipeline hot water circulation, solar water heater, small fountain, aquarium, etc | ||||||||

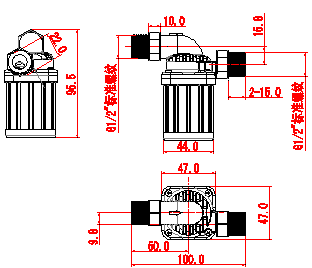

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (inch) | ID (mm) | OD (inch) | ID (mm) | The inlet and outlet threads are positive rotation Standard threaded pipe | ||
| 100 | 47 | 95.5 | IP67 | G1/2〞 Standard threaded pipe | φ14.5 | G1/2〞 Standard threaded pipe | φ13 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
