Model | ZL25-02G1 | ||||||||
Working Voltage Range | DC: 3.5V-12V | ||||||||
Rating Power | 3.5V: 0-2W / 6V: 0-3W / 12V: 0-3W | ||||||||

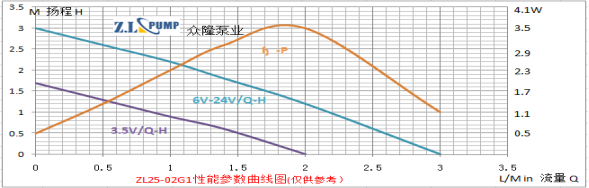

Static Water Head | 0-3 M | ||||||||
Static Flow Rate | 0-3 L/min | ||||||||
Lifespan | Continuous operation≤24hrs,under normal working surrounding >30000Hr | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable both on land and in water (Submersible) | ||||||||
Max Noise | Under normal working condition, 1M distance over the test instrument <32dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature ≤100℃ | ||||||||
Application | Coffee machine, Coffeepot, Coffee cup, Water dispenser, Juice machine, Small fountain, Aquarium etc. | ||||||||
Size | IP Grade | Inlet | Outlet | Remark | |||||
Length（mm） | width（mm） | Height（mm） | OD（mm） | ID（mm） | OD（mm） | ID（mm） | Inlet and outlet have footgrip | ||
36 | 27 | 35 | IP68 | φ9.6 | φ6.5 | φ6 | φ3.5 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
