Model | ZL50-10 | ||||||||
Working Voltage Range | DC: 6V-24V | ||||||||
Rating Power | 6V: 0-38W/12V: 0-38W/24V: 0-52W | ||||||||

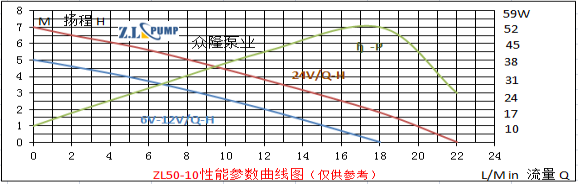

Static Water Head | 0-7 M | ||||||||
Static Flow Rate | 0-22 L/min | ||||||||
Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000hrs | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable on land (Non submergible) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument <45dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature ≤70℃ | ||||||||
Application | Radiator of (electric) vehicles, water coolant for engine and vehicles, car shower, aquarium, etc. | ||||||||
Size | IP Grade | Inlet | Outlet | Remarks | |||||
Length (mm） | Width（mm） | Height（mm） | OD （mm） | ID （mm） | OD （mm） | ID （mm） | Inlet and outlet have standard thread | ||
118 | 57 | 117 | IP67 | G1/2″ standard pipe thread | φ13 | G1/2″ standard pipe thread | φ13 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
