| Model | ZL32-09 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：2-6W / 12V：3-6W / 24V：4-7W | ||||||||
| Static Water Head | 0.58-2.0M | ||||||||
| Static flow rate | 3-4.5Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | PH value: weak acid, neutral, weak base. Non diving use | ||||||||
| Max Noise | Under normal working condition, the water pump is 1m away from the tester ＜35Decibel | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Computer water circulation heat dissipation, small fountain, aquarium, etc | ||||||||

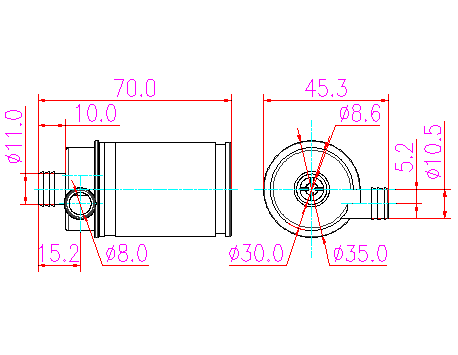

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length （mm） | Width （mm） | Height （mm） | OD （mm） | ID （mm） | OD （mm） | ID （mm） | Inlet and outlet with anti slip strip | ||
| 45 | 35 | 70 | IP67 | φ11 | φ8.6 | φ10.5 | φ8 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
