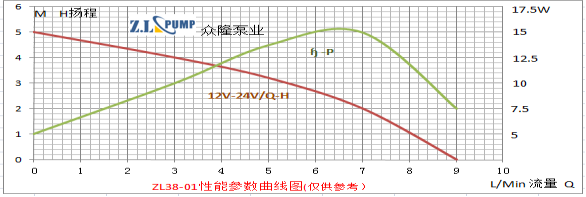

Model | ZL38-01 | ||||||||
Working Voltage Range | DC: 1-24V | ||||||||
Rating Power | 12V: 0-15W / 24V: 0-15W | ||||||||
Static Water Head | 0-5 M | ||||||||
Static Flow Rate | 0-9 L/min | ||||||||
Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000Hr | ||||||||
Working Environment | Liquid: From weak acid to weak base, workable on land (Non-Submersible) | ||||||||
Max Noise | Under normal working status, 1M distance over test instrument <40dB | ||||||||
Max Working Temperature | Under normal surroundings, fluid medium temperature≤70℃ | ||||||||
Application | Electrical refrigerator, air conditioner, cloth washing machine, drinker | ||||||||
Size | IP Grade | Inlet | Outlet | Remark | |||||
Length（mm） | width（mm） | OD（mm） | OD（mm） | ID（mm） | OD（mm） | ID（mm） | Outlet with footgrip | ||
51 | 45 | 70.5 | IP66 | φ13.5 | φ10.5 | φ8.8 | φ6.45 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
