| Model | ZL38-41 | |||||||||
| Working Voltage Range | DC：6-24V | |||||||||
| Rating Power | 6V：2-12W / 12V：3-18W / 24V：5-20W | |||||||||
| Static Water Head | 1-6M | |||||||||
| Static flow rate | 4-10Litre / minute | |||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | |||||||||
| Working Environment | PH value：PH5-10（Weak acid and weak base）、non-Submersible pump | |||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜35dB | |||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤70℃ | |||||||||
| Application | Pipeline hot water circulation, solar water heater, small fountain, aquarium, etc | |||||||||

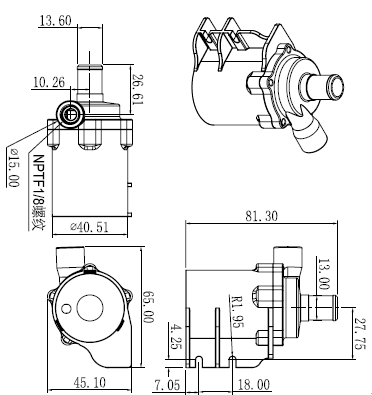

| Size | IP Grade | Inlet | Outlet | Remarks | ||||||
| Length (mm) | Width (mm) | Height (mm) | OD (mm) | ID (mm) | OD (mm) | ID (mm) | Inlet Slip strip | |||
| 78 | 45 | 66 | IP67 | φ13 | φ11 | φ15 | 1/8Spiral teeth | |||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
