| Model | ZL32-16 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：2-6W / 12V：3-6W / 24V：4-7W | ||||||||
| Static Water Head | 1-2.5M | ||||||||
| Static flow rate | 2.5-4.5Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | PH value：PH5-10（Weak acid and weak base）、Amphibious use | ||||||||
| Max Noise | Continuous operation under normal working condition (water pump is 1m away from the tester)＜35dB | ||||||||
| Max Working Temperature | At room temperature, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Solar water circulation system, small fountain, aquarium, water heating bed, medical equipment, water heating cushion, etc | ||||||||

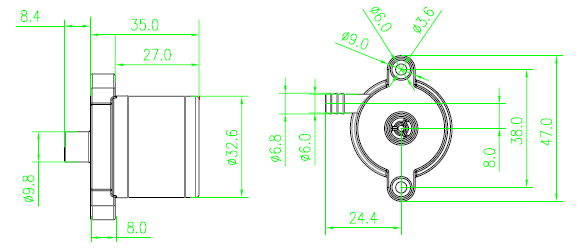

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length （mm） | Width （mm） | Height （mm） | OD （mm） | ID （mm） | OD （mm） | ID （mm） | Outlet Slip strip | ||
| 43.8 | 47 | 40.8 | IP68 | φ9.8 | φ7 | φ6 | φ4.2 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
