| Model | ZL38-20 | ||||||||
| Working Voltage Range | DC;6-24V | ||||||||
| Rating Power | 6V：2-12W / 12V：3-18W / 24V：5-25W | ||||||||
| Static Water Head | 1-6M | ||||||||
| Static flow rate | 7-17Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | Applicable liquid pH value: weak acid, neutral, weak base. Amphibious use | ||||||||
| Max Noise | Normal working condition, the water pump is 1 meter away from the tester<40dB | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Pipeline hot water circulation, solar water heater, small fountain, aquarium, etc | ||||||||

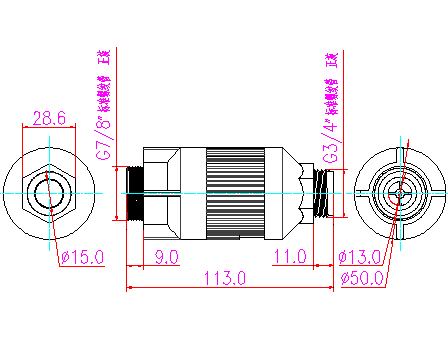

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (inch) | ID (mm) | OD (inch) | ID (mm) | enter、Outlet Positive rotation Thread | ||
| 50 | 50 | 113 | IP68 | G7/8〞 Standard threaded pipe | φ13 | G3/4〞 Standard threaded pipe | φ15 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
